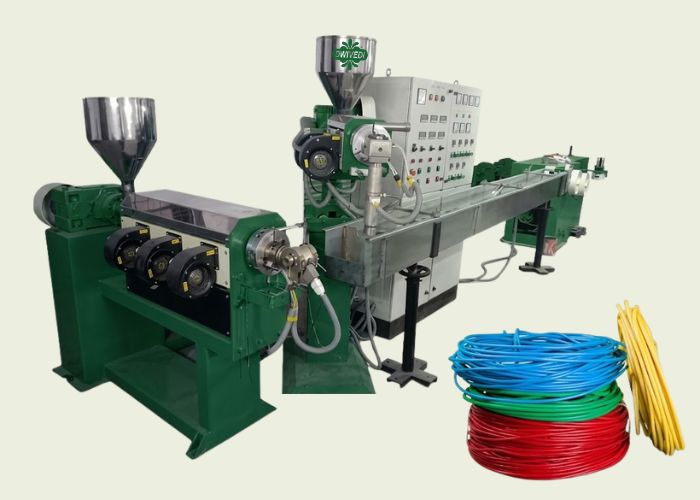

40/35 mm Wires and Cables Plant Complete
with Gearbox, Electric Motor & Accessories as under.
Gitta Stand : 56 Bobbin with 11 Rods 14 mm, 4 Rods 25 mm.
40/35 mm Double Coating Screw/Barrel: EN/41B Nitride & Crome (40 Bore -130 Dia)
Die Nozzles : 2 Set of Double Coating & 2 Set of Single Coating
Gear Box : UC-130 Helicals Type Crown ( Gear Size 35 No. / 40 No. )
Hoppers : Ordinary SS
AC Drive: Delta
Motor: Crompton/Kiloskar
Screw Ratio : 1.25 Single Churi
Types of manufacturing : All Kind of Wires (Ex. Telephone wire, flexible wire etc).
Water Tank : Fitted on adjustable frame 10x10x10 Ft.
Take Up : 12″ Rula with Gitta Saffet and Paan
M.S Sheet Frame of 3 Ft Weidth, 5.5 Ft Height,
AC Drive & & Semi Automatics with Gear Box of 3″ Crossed Gears
Controling Panel: Digital Perometer and Automatic AC Drive and Complete Panel
Mixture Machine : Capacity 25 Kg. with 7.5 HP Motor ISI Kiloskar
Coiling Stand : 25″ x 45″ Frame with Two Heads
